FBW105A, 96 lamps per meter 3528 patch silicone sleeve waterproof lamp with DC12V
- Commodity ID: FBW105A
LED 3528 Light Strip
Red line is positive, black line is negative
W: 548-638 lm
Number of cascades
Number of LEDs
3M double-sided tape
Degree of protection
Silicone casing waterproof
Product light source parameters:
can choose colour
Red/Yellow: 1.9-2.2V Blue/Green/White: 3.0-3.3V
LED color temperature/wavelength
LED luminous flux/brightness

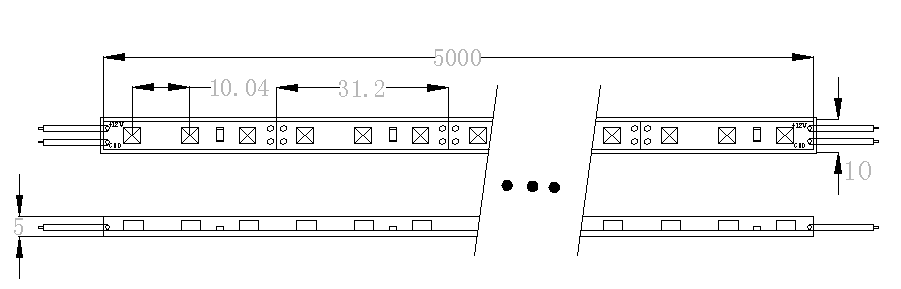

Schematic diagram of product dimensions (unit: MM):
Product installation wiring diagram:
Matters needing attention in product installation and use:
(A). During the installation of this product, sharp objects should be avoided from touching the surface of the lamp bead to avoid damage.
(B). Avoid using acidic glass glue or other adhesive glue to fix this product, and avoid using and storing this product in an acidic environment, so as to avoid vulcanization of the lamp beads and affect the service life of the product.
(C). Use 12V DC constant voltage switching power supply to drive this product, and select a power supply with appropriate power according to the number of connected LED strips; do not connect this product directly to 220V mains, otherwise the product will be burned.
(D). The total power of the series-connected LED light strips should be lower than 80% of the rated power of the drive power supply, otherwise the power supply will be easily burned. In addition, according to the actual number of series-connected light strips, select the appropriate thickness of the connecting line, between the line and the line The connection point must be tightly wrapped with insulating electrical glue to ensure the safe use of this product!Key words:
