FFX065A, 8mm wide, 60 lamps per meter, 2835 S-type non waterproof soft light strip
-
- Commodity ID: FFX065A
Classification:
LED 2835 Light Strip
key word:
FFX065A
S type non-waterproof flexible light bar
- Details
-
1. Product description:
1. It adopts DC12V constant voltage drive mode, 3 lights and 1 cut, flexible to use;
2. Adopt high-quality 2835 light source, which has the characteristics of high brightness, uniform light color and strong antistatic ability;
2. Double-sided FPC board is used to increase the electrical and thermal conductivity of the product, and at the same time reduce the brightness difference caused by voltage drop;
4. The unique S-shaped structure design is adopted, and the rolling copper process ensures the flexibility of the product and the stability of the product when it is bent and used;
Application place: suitable for various small luminous characters such as mini characters and resin characters.
2. Product parameters:
Operating Voltage:
DC12V
Circuit board material:
Double-sided S-type FPC
power:
9.6W/M
circuit board color;
White
Luminous flux:
840lm/M
Connecting wire material:
UL1007 22AWG
Light effect:
87.5lm/W
Cable color:
Red line is positive, black line is negative
Beam angle:
120°
Number of cascades:
5M
physical dimension:
5000*8*1.6 mm
a fixed way:
Adhesive
Number of LEDs:
60LED
Adhesive:
3M double-sided tape
Protection class:
IP33
Operating temperature:
-25~60℃
Warranty years:
2 years
Storage temperature:
-25~70℃
3. Product light source parameters:
LED type
SMD2835
service life
＞15000H
Significant
>70
can choose colour
white/red/yellow/blue/green
LED color temperature/wavelength
white light
red light
yellow light
blu ray
green light
2800-15000
620-625
588-592
460-465
520-525
LED luminous flux/brightness
20-22LM
600-800MCD
800-1000MCD
1000-1300MCD
1500-1800MCD
The final interpretation right of this product belongs to Guangke Lighting, and it is subject to change without prior notice.

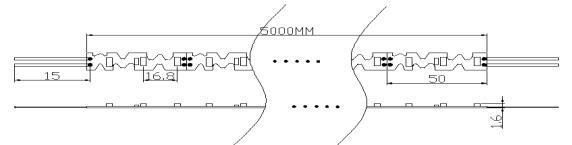

4. Schematic diagram of product dimensions (unit: mm):

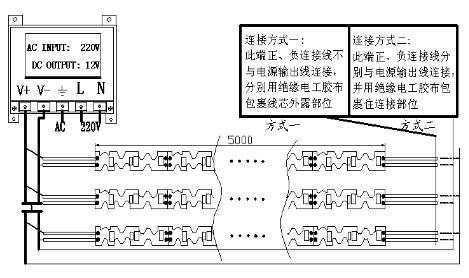

5. Schematic diagram of product installation and wiring:
6. Matters needing attention in product installation and use:
(1). During the installation of this product, sharp objects should be avoided from touching the surface of the lamp bead to avoid damage.
(2). Avoid using acidic glass glue or other adhesive glue to fix this product, and avoid using and storing this product in an acidic environment, so as to avoid vulcanization of the lamp beads and affect the service life of the product.
(3). Use 12V DC constant voltage switching power supply to drive this product, and select a power supply with appropriate power according to the number of connected LED hard light bars; do not connect this product directly to 220V mains, otherwise the product will be burned.
(4). The total power of the series-connected LED strips should be lower than 80% of the rated power of the drive power supply, otherwise the power supply will be easily burned. In addition, according to the actual number of series-connected strips, select the appropriate thickness of the connecting line, and the distance between the lines The connection point must be tightly wrapped with insulating electrical glue to ensure the safe use of this product!
Key words:- FFX065A
- S type non-waterproof flexible light bar
