FFW003A, 8 * 5000mm, 60 lamps per meter, 2835 patch, bare plate, non waterproof, flexible lamp with DC12V
-
- Commodity ID: FFW003A0
Classification:
LED 2835 Light Strip
key word:
- Details
-
Product parameters:
Operating Voltage
DC 12V
Circuit board material:
Double-sided FPC
Input Current:
1000 mA
circuit board color;
White
power:
12W
Connecting wire material:
UL1007 22AWG
Beam angle:
120°
Connecting wire color:
Red line is positive, black line is negative
Luminous flux:
17-22 lm/pcs
Number of cascades:
5M
physical dimension:
1000*8*2.5 mm
a fixed way:
3M Adhesive
Number of LEDs:
60 pcs
Adhesive:
none
Luminous color:
red/yellow/blue/green/white
Operating temperature:
-40~60℃
Protection class:
IP20
Storage temperature:
-60~80℃
Waterproof method:
----
Warranty years:
2 years
Product light source parameters:
LED type
SMD 2835
Beam angle
120°
service life
>30000H
can choose colour
red/yellow/blue/green/white
Forward Voltage
Red/Yellow: 1.9-2.2V Blue/Green/White: 3.0-3.3V
LED color temperature/wavelength
white light
red light
yellow light
blu ray
green light
2800-15000
620-625
588-592
460-465
520-525
LED luminous flux/brightness
white light
red light
yellow light
blu ray
green light
18-22LM
1300-1700MCD
600-780MCD
600-900MCD
2500-3000MCD

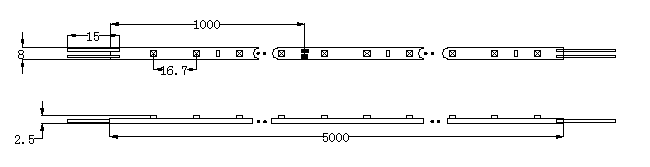

Schematic diagram of product dimensions (unit: MM)
Product installation wiring diagram:
Matters needing attention in product installation and use:
(A). During the installation of this product, sharp objects should be avoided from touching the surface of the lamp bead to avoid damage.
(B). Avoid using acidic glass glue or other adhesive glue to fix this product, and avoid using and storing this product in an acidic environment, so as to avoid vulcanization of the lamp beads and affect the service life of the product.
(C). Use 12V DC constant voltage switching power supply to drive this product, and choose a power supply with appropriate power according to the number of connected LED flexible light strips; do not connect this product directly to 220V mains, otherwise the product will be burned.
(D). The total power of the series-connected LED light strips should be lower than 80% of the rated power of the drive power supply, otherwise the power supply will be easily burned. In addition, according to the actual number of series-connected light strips, select the appropriate thickness of the connecting line, between the line and the line The connection point must be tightly wrapped with insulating electrical glue to ensure the safe use of this product!
