MDW156D, 1 lamp 4.0W 3535 with optical 160 ° injection module
-
- Commodity ID: MDW156D
Classification:
LED High-power Module
key word:
- Details
-
1. Product description:
1. It adopts flip-chip eutectic 3535 light source, which has the characteristics of high brightness, uniform light color and strong antistatic ability;
2. It adopts DC12V power supply, constant current circuit driving mode, and single lamp can be cut;
3. Equipped with 160° optical lens, The appearance is beautiful, the PCB adopts high-conductivity aluminum substrate, and the heat dissipation effect is good;
4. The module adopts the ABS half-pack injection molding process, the flame retardant grade is UL94V-2, and the protection grade is IP65.Application places: mainly used in 12-30cm light box signboards, single-sided advertising light boxes, etc.
2. Product parameters
Operating Voltage:
DC12V
Exterior color:
White
power:
4W
Weight (20PCS):
435g
Luminous flux:
265lm
Standard cascade (Typ):
15PCS
Light effect:
66lm/W
a fixed way:
Glass glue or screw ST2.9x12mm
Beam angle:
160°
Adhesive:
White release paper blue 3M lettering adhesive
Number of LEDs:
1PCS
Operating temperature:
-40~60℃
Protection class:
IP65
Storage temperature:
-40~80℃
physical dimension:
62*34*12.8mm
Warranty period:
5 years/30000H
3. Product light source parameters:
LED type
SMD3535
LED optional color temperature/wavelength
6300-7000K
7000-8000K
Significant
>70
LED luminous flux/brightness
245-274lm
245-274lm
4. Product light source parameters:

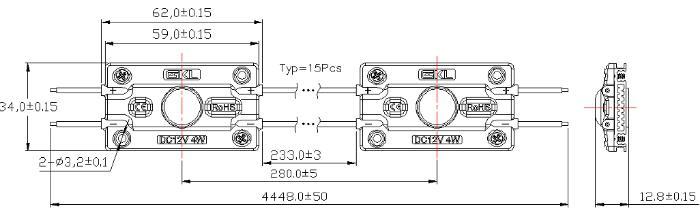

5. Schematic diagram of product dimensions (unit: mm):
6. Schematic diagram of product installation and wiring:
7. Product application:
Diwali scheme
Light box thickness mm
Light box size mm
Lighting line spacing mm
Lighting column spacing mm
Actual dosage PCS
Installation density PCS/m²
Surface illuminance
LUX/m²
Recommended plan
180
2000x1000
200
220
46
twenty three
2600-3000
Option one
150
1000x1000
200
200
25
25
3000-3400
Option Two
200
1500x1200
220
220
38
twenty one
2400-2800
Option three
250
1200x1000
220
220
25
twenty one
2200-2600
Note: The above row light data is for reference only. The thickness of the test panel is 3mm milky white acrylic board, and the light transmittance is about 54.4%.
8. Matters needing attention in product installation and use:
(1). Use 2x1.5mm² or more cables for the main power line (choose the corresponding main power line according to the load current). If the module power line needs to be lengthened, you must use a wire with a specification above 0.75mm²/18# to avoid overloading and overheating the power line.
(2). The single lamp of the module can be cut. When the module is cut short and connected, first use diagonal pliers to cut the power cord between the two modules in the middle, peel off the outer skin about 10mm, and put the corresponding color ( The white and red strips are the positive pole, and the white and blue strips are the negative pole) the wires are twisted into one strand, and then insulated and waterproofed with a special waterproof tape. It is advisable to pull out;
(3). When installing the module, first tear off the release paper at the bottom of the module, stick it to the light box or the advertising logo for preliminary fixation, and then use 2 ST2.9x12mm self-tapping screws to lock and reinforce , and can also be fixed by applying glass glue on both sides of the module;
(4). The terminal module wires need to be waterproofed with waterproof tape or wiring waterproof plugs to avoid short circuit damage to the product;
(5). Module standard grade Connect 15PCS, use DC12V single-ended power supply; please do not overconnect to avoid damage to the product due to excessive line load current;
(6).Note: It is recommended to use a switching power supply (with short-circuit protection, over-voltage protection, and over-current protection) that has passed the relevant safety certification.
