MPW141A, 7815 three lamp patch 5050PVC injection molding waterproof module DC12V
- Commodity ID: MPW141A
LED 5050 Module
Fire retardant PVC
Red line is positive, white line is negative
Number of cascades
Number of LEDs
3M foam glue
Degree of protection
Product light source parameters:
can choose colour
Red/Yellow: 1.9-2.2V Blue/Green/White: 3.0-3.3V
LED color temperature/wavelength
LED luminous flux/brightness

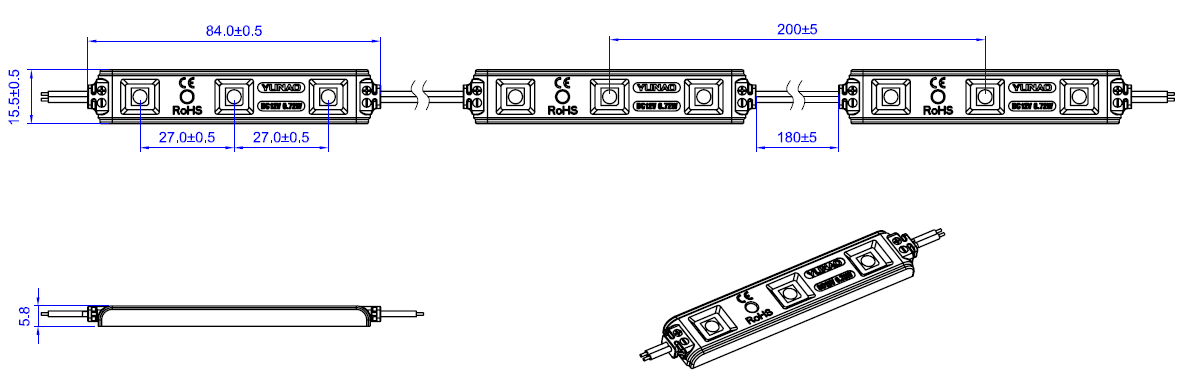

Schematic diagram of product dimensions (unit: MM)
Product installation wiring diagram
Matters needing attention in product installation and use:
(A). During the installation of this product, sharp objects should be avoided from touching the surface of the lamp bead to avoid damage.
(B). Avoid using acidic glass glue or other adhesive glue to fix this product, and avoid using and storing this product in an acidic environment, so as to avoid vulcanization of the lamp beads and affect the service life of the product.
(C). Use 12V DC constant voltage switching power supply to drive this product, and select a power supply with appropriate power according to the number of connected LED modules; do not connect this product directly to 220V mains, otherwise the product will be burned.
(D). The total power of the series-connected LED modules should be lower than 80% of the rated power of the drive power supply, otherwise it is easy to burn the power supply. In addition, according to the actual number of series-connected modules, select the appropriate thickness of the connecting line, between the line and the line The connection point must be tightly wrapped with insulating electrical glue to ensure the safe use of this product!
(E). The maximum cascade of this product is a string of 20PCS. When the number of cascades continues to increase, due to the line loss and voltage drop on the connecting line, there will be obvious brightness differences at both ends of the product.
