MAW153D1 three lamp 1.44W 5630 constant current injection molding square module with lens
-
- Commodity ID: MAW153D1
Classification:
LED 5630 Module
key word:
- Details
-
1. Product description:
1. It adopts high-quality SAMSUNG5630 light source, which has the characteristics of high brightness, uniform light color, and strong antistatic ability;
2. It adopts DC12V power supply and linear constant current circuit drive mode;
3. Equipped with optical lens, the appearance is beautiful, and the PCB adopts high conductivity Aluminum substrate, good heat dissipation effect;
4. The module is made of fireproof material, the fireproof level can reach U94V-2, and the protection level is IP65.Application places: suitable for 8-20cm advertising signboard characters, advertising light boxes, etc.
2. Product parameters:
Operating Voltage:
DC12V
Exterior color;
off-white ABS
power:
1.44W
Connecting wire material:
UL2468/20AWG
Luminous flux:
140 Lm
Weight (20PCS):
272g
Light effect:
97lm/W
Standard cascading:
20Pcs
Beam angle:
160°
Fixing screw:
ST2.5x10mm
Number of LEDs:
3LED
Adhesive:
3M white adhesive
Lamp bead brand:
SAMSUNG
Operating temperature:
-40~60℃
physical dimension:
47*43*7mm
Storage temperature:
-40~80℃
Protection class:
IP65
Warranty period:
3 years
3. Product light source parameters:
LED type
SAMSUNG 5630
service life
＞30000H
Significant
>70
can choose colour
warm white/natural white/pure white
LED color temperature
Warm White
Natural White
True white
2800-3500K
4000-4500K
5000-6500K
LED luminous flux (@150MA)
50-55LM
50-55LM
55-60LM
4. Schematic diagram of product dimensions (unit: mm):

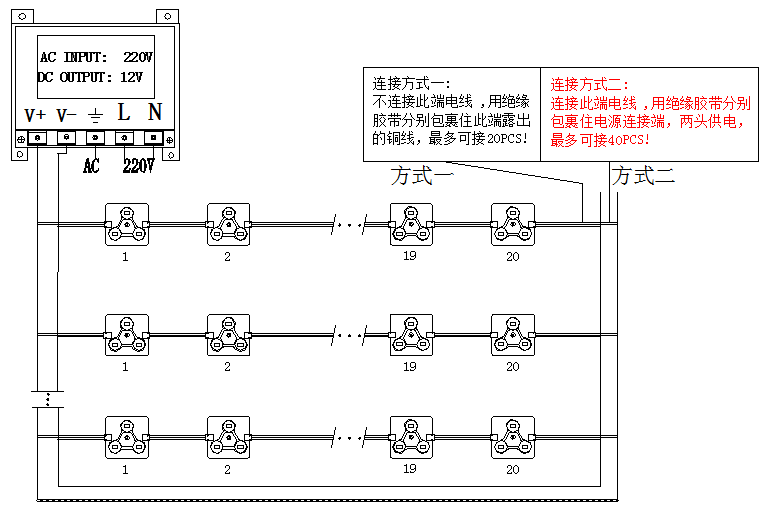

5. Schematic diagram of product installation and wiring:
6. Matters needing attention in product installation and use:
(1). Use 2x1.5mm² or more cables for the main power line (choose the corresponding main power line according to the load current). If the module power line needs to be extended, you must use a wire with a specification of 0.75mm²/18# or above to avoid overloading and overheating the power line.
(2). The single lamp of the module can be cut. When the module is cut short and connected, first use diagonal pliers to cut the power cord between the two modules in the center, peel off the outer skin about 10mm, and put the corresponding color ( The positive pole of the red and white line, and the negative pole of the white line) are twisted into one strand, and then insulated and waterproofed with a special waterproof tape. Finally, the continuity and reliability of the power terminal are checked. It is advisable that the wire cannot be pulled out from the terminal with bare hands. ;
(3). When installing the module, first tear off the adhesive release paper at the bottom of the module, stick it to the light box or the advertising logo for preliminary fixation, and then use a ST2.5x10mm self-tapping screw to lock and reinforce it. The two sides of the module are fixed with glass glue;
(4). The terminal module wires need to be waterproofed with waterproof tape or wiring waterproof plugs to avoid short circuit damage to the product;
(5). Standard cascading of modules 20PCS, adopt Single-ended power supply; the maximum cascaded 40PCS, power supply at both ends, please do not overconnect, to avoid damage to the product due to excessive line load current;
(6). .Note: It is recommended to use a switching power supply (with short-circuit protection, over-voltage protection, and over-current protection) that has passed the relevant safety certification.
