MAW195D1 three lamp 5630 constant current injection molding module with lens
-
- Commodity ID: MAW195D1
Classification:
LED 5630 Module
key word:
- Details
-
1. Product description:
1. It adopts high-quality 5630 light source, which has the characteristics of high brightness, uniform light color, and strong antistatic ability;
2. It adopts DC12V power supply and linear constant current circuit drive mode;
3. It is equipped with a large-angle optical lens, beautiful appearance, PCB The high-conductivity aluminum substrate is used, and the heat dissipation effect is good;
4. The module is made of fireproof material, the fireproof level can reach U94V-2, and the protection level is IP66.Application places: suitable for 8-20cm advertising signboard characters, advertising light boxes, etc.
2. Product parameters:
Operating Voltage:
DC12V
Exterior color;
off-white ABS
Luminous flux:
130lm
Cable specification:
UL1007 20AWG
power:
1.44W
Number of cascades:
20Pcs
Beam angle:
160°
Weight (20PCS):
180g
Light effect:
90lm/w
Fixing screw:
ST2.5x10mm
Number of LEDs:
3LED
Adhesive:
3M White Serrated Adhesive
Protection class:
IP66
Operating temperature:
-40~60℃
physical dimension:
78*15*6.6mm
Storage temperature:
-40~80℃
Warranty period:
3 years
3. Product light source parameters:
LED type
SAMSUNG 5630
service life
＞30000H
Significant
>70
LED color temperature
warm light
Natural White
True white
2800-3500K
4000-4500K
5000-6500K
LED luminous flux (@150MA)
50-55LM
50-55LM
55-60LM
4. Schematic diagram of product dimensions (unit: mm):

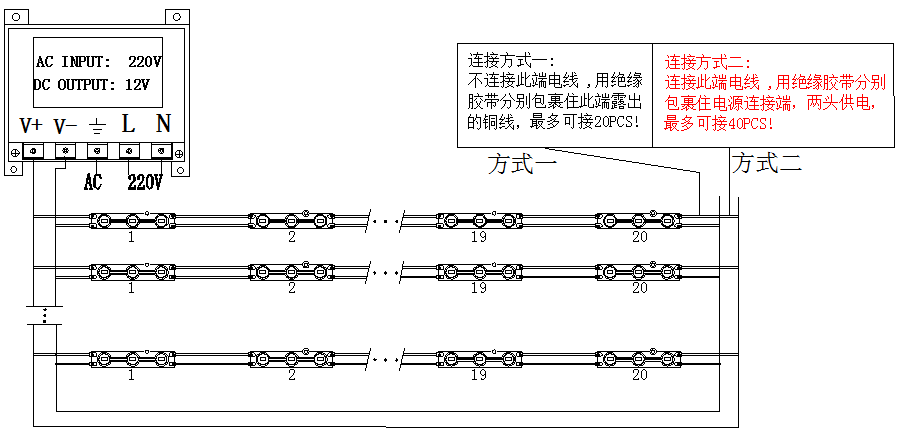

5. Schematic diagram of product installation and wiring:
6. Matters needing attention in product installation and use:
(1) Use 2x1.5mm² or more cables for the main power line (select the corresponding main power line according to the load current). If the module power line needs to be lengthened, you must use a wire with a specification of 0.75mm²/18# or above to avoid overloading and causing the power line to overheat , leading to adverse consequences;
(2) The single lamp of the module can be cut. When the module is cut short and connected, first use diagonal pliers to cut the power line between the two modules in the center, peel off the outer skin about 10mm, and put the corresponding color (red and white) The positive pole of the phase-to-phase line and the negative pole of the white line) are twisted into one strand, and then insulated and waterproofed with special waterproof tape, and finally the continuity and reliability of the power terminal are checked, so that the wire cannot be pulled out from the terminal with bare hands;
( 3) When installing the module, first tear off the adhesive release paper at the bottom of the module, paste it in the light box or the advertising logo for preliminary fixing, and then use 1 ST2.5x10mm self-tapping screw to lock and reinforce, or use both sides of the module Fix it with glass glue;
(4) The terminal module wire ends need to be waterproofed with waterproof tape or wiring waterproof plugs to avoid short circuit damage to the product
; Cascade 40PCS, use both ends of the power supply, do not overconnect, to avoid excessive line load current and damage the product;
(6) The module can not be completely exposed to outdoor use, do not touch live, live work.Note: It is recommended to use a switching power supply (with short-circuit protection, over-voltage protection, and over-current protection) that has passed the relevant safety certification.
