MFW147A, 5416 two lamp 2835 patch injection molding waterproof module DC12V
-
- Commodity ID: MFW147A
Classification:
LED 2835 Module
key word:
- Details
-
Product parameters:
Operating Voltage
DC 12V
shell material
Fire retardant PVC
Input Current
60 mA
shell color
White
power
0.72W
Cable material
UL1007 20AWG
Beam angle
170°
Cable color
Red line is positive, white line is negative
Luminous flux
W: 43-47 lm
Number of cascades
20 pcs
physical dimension
54*16*7 mm
set screw
M3
Number of LEDs
2 pcs
Adhesive
EVA foam glue
glow color
red/white
Operating temperature
-40~60℃
Degree of protection
IP65
Storage temperature
-60~80℃
waterproof method
Injection molding + conjoined optical lens
Warranty years
2 years
LED light source parameters:
LED type
SMD2835
Beam angle
170°
service life
>30000H
can choose colour
red/warm white/true white/cool white
Forward Voltage
Red: 1.9-2.2V White: 3.0-3.3V
LED color temperature/wavelength
warm white light
positive white light
cold white light
red light
2800-3500K
3500-6500K
6500-15000K
620-625nm
LED luminous flux/brightness
warm white light
positive white light
cold white light
red light
18-20 lm
20-22 lm
20-22 lm
1300-1700 mcd
Schematic diagram of product dimensions (unit: MM):

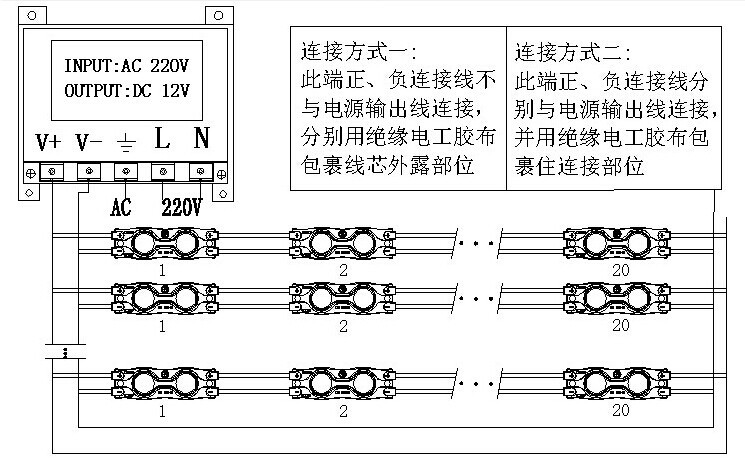

Product installation wiring diagram:
Matters needing attention in product installation and use:
(A). During the installation of this product, sharp objects should be avoided from touching the surface of the lamp bead to avoid damage.
(B). Avoid using acidic glass glue or other adhesive glue to fix this product, and avoid using and storing this product in an acidic environment, so as to avoid vulcanization of the lamp beads and affect the service life of the product.
(C). Use 12V DC constant voltage switching power supply to drive this product, and select a power supply with appropriate power according to the number of connected LED modules; do not connect this product directly to 220V mains, otherwise the product will be burned.
(D). The total power of the series-connected LED modules should be lower than 80% of the rated power of the drive power supply, otherwise it is easy to burn the power supply. In addition, according to the actual number of series-connected modules, select the appropriate thickness of the connecting line, between the line and the line The connection point must be tightly wrapped with insulating electrical glue to ensure the safe use of this product!
(E). The maximum cascade of this product is a string of 20PCS. When the number of cascades continues to increase, due to the line loss of the wire, the voltage drop will cause a significant difference in brightness between the two ends of the product.
