MFW061A 2835 three lamp aluminum base plate patch module 4506 specification
-
- Commodity ID: MFX061A
Classification:
LED 2835 Module
key word:
- Details
-
Product parameters:
Operating Voltage:
DC 12V
shell material:
none
Input Current:
30 mA
plate material;
Aluminum plate
power:
0.36W
Connecting wire material:
Silicone Line
Beam angle:
120°
Connecting wire color:
Gray line is positive, white line is negative
Luminous flux:
25-30 lm
Number of cascades:
20PCS
physical dimension:
45*6*2 mm
Fixing screw:
none
Number of LEDs:
3 pcs
Adhesive:
Thermally conductive double-sided adhesive
Luminous color:
red/yellow/blue/green/white
Operating temperature:
-40~60℃
Protection class:
IP20
Storage temperature:
-40~80℃
Waterproof method:
none
Warranty years:
2 years
Product light source parameters:
LED type
3 SMD2835
Beam angle
120°
service life
>30000H
can choose colour
red/yellow/blue/green/white
Forward Voltage
Red/Yellow: 1.9-2.2V Blue/Green/White: 3.0-3.3V
LED color temperature/wavelength
white light
red light
yellow light
blu ray
green light
2800-15000
620-625
588-592
460-465
520-525
LED luminous flux/brightness
white light
red light
yellow light
blu ray
green light
18-22LM
1300-1700MCD
600-780MCD
600-900MCD
2500-3000MCD

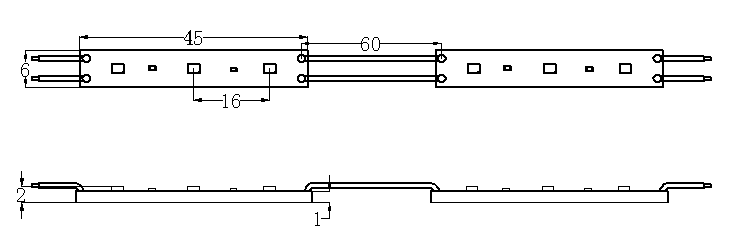

Schematic diagram of product dimensions (unit: MM)
Product installation wiring diagram
