AC220V injection mold - Terminator II
-
- Commodity ID: MFW8A3D
Classification:
Terminator II
key word:
- Details
-
1. Product description:
1. Adopt high-quality light source, which has the characteristics of high brightness, uniform light color, and strong antistatic ability;
2. Mains input range AC200V-264V 50Hz/60Hz power supply, power factor above 0.9, effectively reducing power grid loss and improving power grid efficiency;
3. The appearance is beautiful, equipped with 155° optical lens, the number of lights used is small, and the lighting is uniform;
4. The circuit design has constant current, over-temperature, and short-circuit protection functions;
5. The module is made of fire-resistant materials, and the flame-retardant grade can be Up to U94V-0, protection level IP67;
6. Power-free module, no loss, no voltage drop, single lamp can be cut, easy and fast installation;
7. The product has passed CE, RoHS, LM80, IP67 and other certifications.Application places: suitable for 10-35cm advertising signboards, advertising light boxes, etc.
2. Photoelectric parameters:
Rated working voltage:
AC220V 50Hz/60Hz
Exterior color;
creamy-white
power:
2.5W
Connecting wire material:
PVC
Luminous flux:
220lm
Net weight (100PCS):
3250g
Beam angle:
155°
Standard cascading:
100PCS/string
Power Factor:
＞0.9 or more
Fixing screw:
M3 self-tapping screw
Number of LEDs:
3PCS
Adhesive:
3M Adhesive
Luminous color:
white light
Operating temperature:
-20~55℃
Light effect:
88lm/w
Storage temperature:
-40~80℃
Protection class:
IP67
Warranty period:
5 years or 35000h
physical dimension:
111*28*8.5mm
3. Light source parameters:
LED
SMD LED (LM80)
service life
＞30000H
Significant
≥80
Optional color temperature
6500-7000K/8000-10000K
4. Light distribution curve and spot diagram:

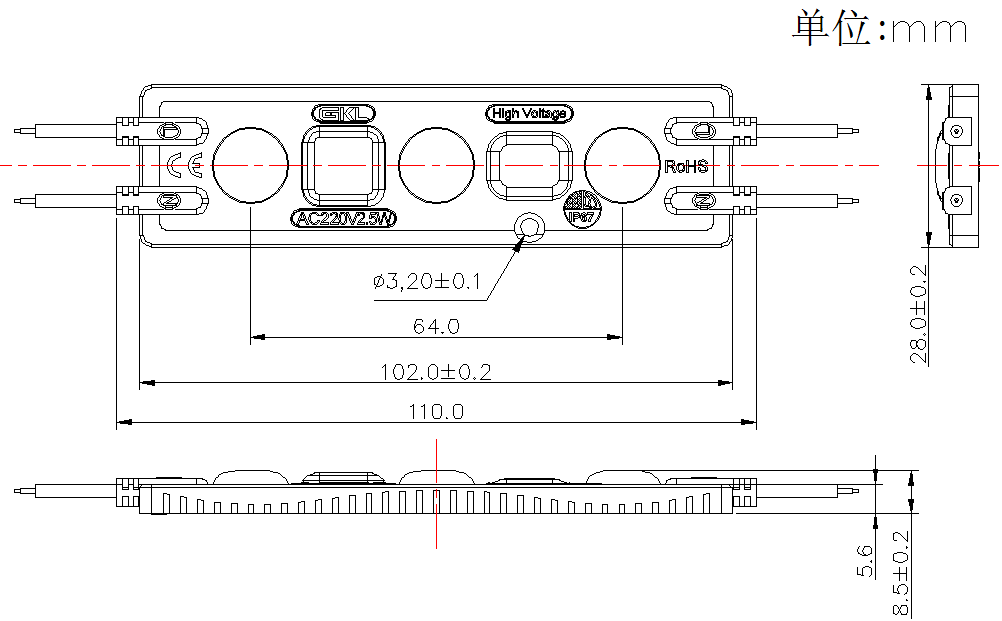

5. Dimensions: (unit: mm)
6. Cascading diagram:
*Note: For installation precautions, please refer to the product instruction manual and installation manual
