AC220V side light injection mold - Terminator IV
1、 Product description: 1. High quality light source, high brightness, uniform light color, strong anti-static ability, etc; 2. The mains power input range is 200V-264VAC 50Hz/60Hz, and the power factor is above 0.9, Effectively reduce power grid loss and improve power grid efficiency; 3. Beautiful appearance, equipped with 12x50 ° optical lens, less use of cloth lamps, and even lighting; 4. Constant power, over temperature and short circuit protection functions; 5. The module is made of fireproof material, with fire retardant grade of UL94V-0 and protection grade of IP67; 6. Powerless module, no loss, no voltage drop, 2 lamps and 1 shear, easy and fast installation; 7. The products have passed CE, RoHS, LM80, IP67 and other certifications. Application place: applicable to 12-35cm single-sided or double-sided advertising light boxes. 2、 Photoelectric parameters: Rated operating voltage AC220V 50Hz/60Hz Appearance color white power 3W Connecting line Double insulated sheathed wire (AWG18) Luminous flux 280lm Net weight (20PCS) 871g Luminous angle 12x50° Standard cascade 20PCS/string (2 lamps and 1 shear) Power factor ＞ 0.9 or above Fixing screw M3 self tapping screw Number of LEDs 2PCS Gum backing 3M VHB back glue Luminous color white light working temperature -20~55℃ Photoefficiency 93lm/w Storage temperature -40~80℃ Degree of protection IP67 Warranty period 5 years External dimensions 75*45*19.6mm 3、 Light source parameters: LED SMD LED (LM80) service life ＞50000H Overt indication ≥80 Color Temperature 6000K-7000K /7000-8000K 4、 Light distribution curve and spot diagram: 5、 Overall dimension: (unit: mm) 6、 Cascade diagram:
-
- Commodity ID: MNW8A9D
Classification:
Terminator IV
key word:
- Details
-
1. Product description:
1. Adopt high-quality light source, which has the characteristics of high brightness, uniform light color, and strong antistatic ability;
2. The mains input range is 200V-264VAC 50Hz/60Hz power supply, and the power factor is above 0.9, which can effectively reduce power grid loss and improve power grid efficiency;
3. Beautiful appearance, equipped with 12x50° optical lens, less number of lights used, uniform lighting;
4. Constant power, over temperature, short circuit protection function;
5. The module is made of fireproof material, flame retardant grade UL94V-0, protection Grade IP67;
6. Power-free module, no loss, no voltage drop, 2 lights and 1 clip, easy and fast installation;
7. The product has passed CE, RoHS, LM80, IP67 and other certifications.Application places: suitable for 12-35cm single-sided or double-sided advertising light boxes, etc.
2. Photoelectric parameters:
Rated working voltage
AC220V 50Hz/60Hz
Exterior color
White
power
3W
cable
Double insulated sheathed wire (AWG18)
Luminous flux
280lm
Net weight (20PCS)
871g
Beam angle
12x50°
standard cascade
20PCS/string (2 lamps and 1 scissors)
Power Factor
＞0.9 or more
set screw
M3 self-tapping screw
Number of LEDs
2PCS
Adhesive
3M VHB Adhesive
glow color
white light
Operating temperature
-20~55℃
light effect
93lm/w
Storage temperature
-40~80℃
Degree of protection
IP67
Warranty period
5 years
physical dimension
75*45*19.6mm
3. Light source parameters:
LED
SMD LED (LM80)
service life
＞50000H
Significant
≥80
Optional color temperature
6000K-7000K /7000-8000K

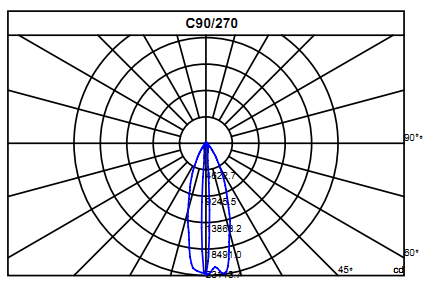

4. Light distribution curve and spot diagram:

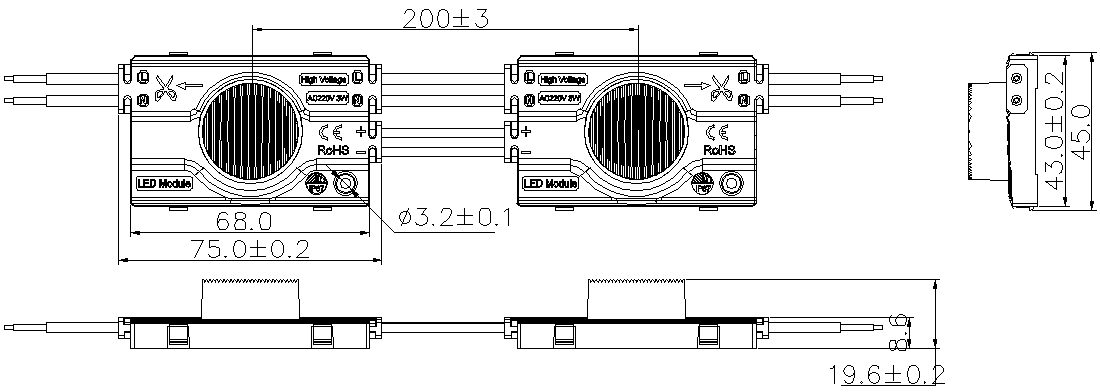

5. Dimensions: (unit: mm)
6. Cascading diagram:
