AC220V injection mold - Terminator III
-
- Commodity ID: MFW8B4D
Classification:
Terminator III
key word:
- Details
-
1. Product description:
1. Adopt high-quality light source, which has the characteristics of high brightness, uniform light color, and strong antistatic ability;
2. The mains input range is 200V-264VAC 50Hz/60Hz power supply, and the power factor is above 0.9, which
can effectively reduce power grid loss and improve power grid efficiency;
3. The appearance is beautiful, equipped with 160x160° optical lens, the number of lights used is small, and the lighting is uniform; 4.
Constant power, over-temperature, short-circuit protection functions;
Grade IP67;
6. Remove the power module, no loss, no voltage drop, single lamp can be cut, easy and fast installation;
7. The product has passed CE, RoHS, LM80, IP67 and other certifications.Application places: suitable for 6-15cm advertising signboard characters, advertising light boxes, etc.
2. Photoelectric parameters:
Rated working voltage
AC220V 50Hz/60Hz
Exterior color
White
power
1.6W
cable
Double insulated sheathed wire (AWG22)
Luminous flux
160lm
Net weight (100PCS)
1500g ( to be determined )
Beam angle
160x160°
standard cascade
100PCS/string
Power Factor
＞0.9 or more
set screw
M3 self-tapping screw
Number of LEDs
3PCS
Adhesive
3M Adhesive
glow color
white light
Operating temperature
-20~55℃
light effect
100lm/w
Storage temperature
-40~80℃
Degree of protection
IP67
Warranty period
5 years
physical dimension
88*21.5*11.1mm
3. Light source parameters:
LED
SMD LED (LM80)
service life
＞50000H
Significant
≥80
Optional color temperature
6500K-7000K / 8000K-9000K
4. Light distribution curve and spot diagram:

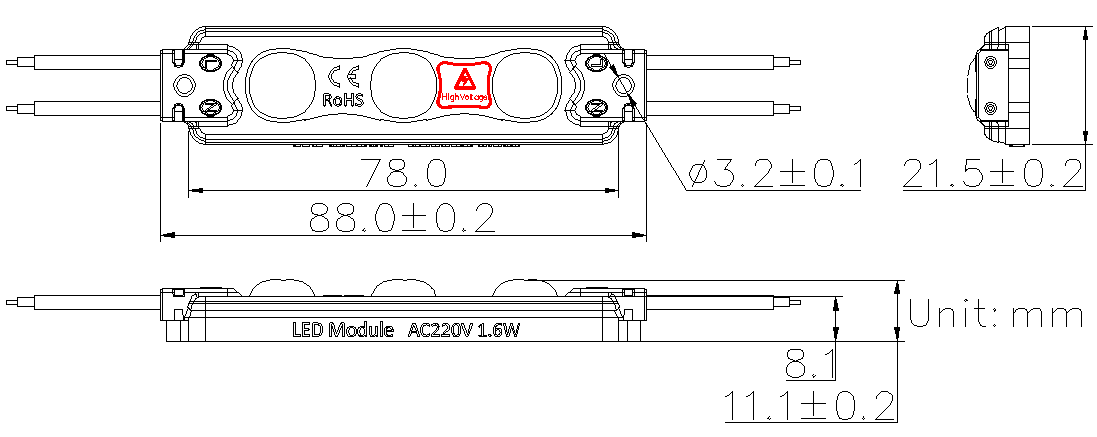

5. Dimensions: (unit: mm )
6. Cascading diagram:
7. Product application (advertising signboard):
*Note: For installation precautions, please refer to the product instruction manual and installation manualStandard sizes
Lighting data
stroke width
（mm）
Letter box thickness
（mm）
Dimensions LxW
（mm）
area
（mm）
Maximum Column Spacing
（mm）
The total amount
（PCS）
Installation density
（PCS/m²）
power
（W/m²）
Surface illuminance (LUX/m²)
63
60
510x320
0.16
120
8
50
80
4000-4500
82
80
665x415
0.28
140
12
42
67.2
3500-4000
110
100
885x507
0.45
165
15
33
52.8
2600-3000
130
120
1060x665
0.7
180
18
26
41.6
1700-2200
